AM2

The perfect balance between sportiness and functionality.

With the launch of the Electric AM2 model, a new technological advance is generated in the electric kart rental industry, which will change the experience and perception of amateur and expert drivers regarding the electric kart.

Thought and created to be surely the best Electric Kart in the world.

Equipped with an innovative 100% electric propulsion system, created and developed jointly by the companies Playanddrive and ADVEO, it is derived from electric competition vehicles. It is a propulsion kit that takes a huge technological leap, allowing new speeds and loading times to date. Proof of this is that in standard speed mode it has load times of 50% of the time of use.

.

DOWNLOAD TECHNICAL SHEET / CATALOG

AM2 ELECTRIC - ADVEO

AM2 – Technical Data Sheet

techichal data-01

TECHNICAL CHARACTERISTICS

  • Lenght: 2060 mm
  • Width: 1415 mm
  • Height: 600 mm
  • Height with roll bar: 980 mm
  • Weight: 175 Kgrs
  • Rear Axle: D50 mm x 2 mm HARD
  • Brake: Hydraulic with 4 pistons
  • Diameter of tube: 40 x 2 mm & 32 x 2 mm Cr-Mo
  • Anti Gas-brake system: YES
  • Adjustable Pedals: YES

Main data

Web

MAIN DATA

  • Max Speed:70-90km/h depending on gear ratio.
  • Continous power: 13 CV

Battery pack

Web
Web

BATTERY PACK

  • Capacity: 4,3kW.h/100A
  • Max Voltage: 49 Vdc
  • Max Current: 200 amp (BMS limited)
  • Life: Up to 10.000 cycles
  • Cooling: Forced ventilation
  • Safety:Fuse, charging contactor, discharging contactor.
  • BMS includes: Under-over voltage protection, over-current
    protection, over temperature protection, balancing and other functionalities





100% ELECTRIC PROPULSION SYSTEM Created and developed jointly by the companies Playanddrive and ADVEO, it is derived from electric competition vehicles. It is a propulsion kit that takes a huge technological leap, allowing new speeds and loading times to date.

Motor

Web

MOTOR

  • Continous power: 13CV
  • Max Speed: 4500 rpm
  • Max torque: 80 N.M
  • IP grade: IP65

Chasis structure

Web

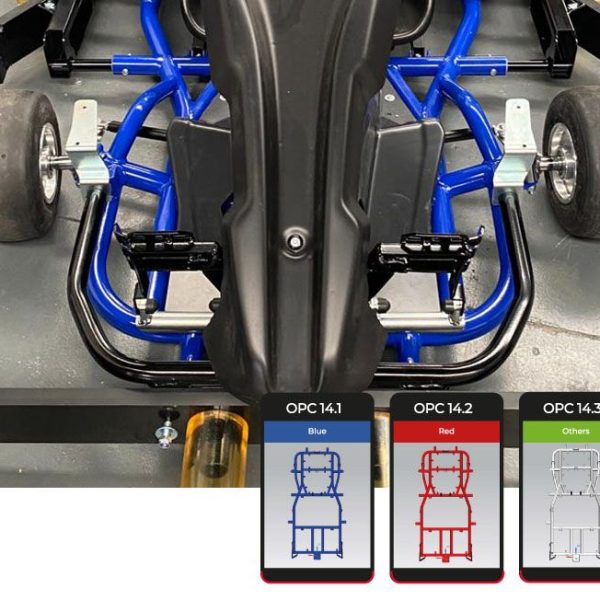

CHASIS STRUCTURE

  • Chassis tubes cut with laser technology and bent with CNC machines with a new Light and ultra-resistant Cr-Mo alloy.

Charger

Web

CHARGER

  • Output current: 120Amp @49 Vdc.
  • Imput Power: 8kW – 3 phase + earth
adveo descripcion AM2

The perfect balance between sportiness and functionality

Thanks to the optimization of the design and when working with light materials, a weight that can vary between 175 and 185 kg has been achieved, depending on the extras, a factor that translates into less consumption of batteries, tires, lightness in the direction and lower impact force in case of collisions.

Regarding safety, the kart is equipped with the best shock absorption systems on the market, roll bars, seat belts, protection of dangerous parts of the kart and electrical protection systems.

In short, the Electric AM-2 is a very reliable, efficient, easy-to-drive kart with simply brutal aesthetics. For us, these are the 4 key points that a rental kart should have to increase the turnover and profits of your circuit. The best work tool for professionals.
